D-CINEMA System
Increase reliability and increase ease
of theater system
Provide digital theater system service from content registration to content transfer, film formation (create schedule), monitoring and screening information reporting packaging them into one integrated system
Through a new concept of web-based theater system, control and allow stakeholders to be only responsible for their field of expertise, increasing the professionalism and the efficiency of the theater business
Main Configuration
The hardware configuration for providing digital theater system is divided into NOC that oversees the entire operation and TMS which is organized by each individual theater. The main components include commercial contents management, NOC for sharing, CMS (Contents Management Server) that is equipped for all TMS, number of CDS (Contents Delivery Server) for smooth distribution of advertising contents and APS (Ads Playback Server) for screening commercials.
Main Functions and Features
NOC Server
| Menu | Main Functions and Features |
|---|---|
| Admin | NOC system operator manages basic information needed to operate the system and registers/manages the new details of the contracts relating to the theater and the advertiser |
| Content Management | Advertisement Agency newly uploads the contents (movie, advertisement, preview etc.) and modifies the registered information and meta-information. Afterwards, according to the schedule TMS related contents can be automatically distributed or NOC system operator can manually register and edit the content before distributing it themselves |
| Organization Management | Ring advertising agency creates a new SPL (Show Play List) and apply rule (Zone, Rolling etc.) to manage. Afterwards, SPL can be distributed through TMS by the schedule, or the NOC operator can manually register and edit the content before distributing it themselves |
| Monitoring | The NOC system operator monitors the status of the theater, advertisement screening server, Sony SMS, TMS Storage in real-time |

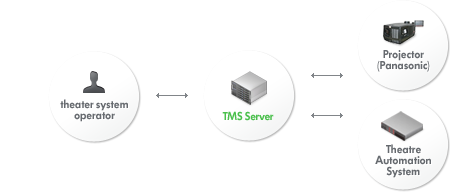

TMS Server
| Menu | Main Function and Features |
|---|---|
| Admin | The theater system operator manages basic information to operate the system |
| Contents Management | The theater system operator checks the contents received from the NOC for any errors then automatically or manually distributes to Sony SMS or Advertisement screening server |
| Organization Management | The theater operator checks the SPL received from the NOC for errors, then automatically or manually distributes the contents to Sony SMS or advertisement screening server |
| Monitoring | TMS collects the status data of the theater, advertisement screening server, Sony SMS and TMS Storage in real-time and sends them to the NOC |
Advertisement Screening Server
| Menu | Main Functions and Features |
|---|---|
| Screening | The theater system operator checks SPL and contents sent from the TMS and shows the advertisement on the projector either manually or automatically. |
| Monitoring | The advertisement screening server collects the data such as the actual screening information and projector condition through TMS. |
Application
Cinus Digital Cinema – NOC, TMS development
